Product Name:Square 21.6mm Led lens for CREE XPE,OSRAM Square,3535,3030 LEDs(HX-CR Series)

Square 21.6mm Led lens for CREE XPE,OSRAM Square,3535,3030 LEDs(HX-CR Series)
  • Model:HX-CR Series LED Lens
  • Dimension:21.6x21.6 H12.79mm
  • Transmittance:93%
  • For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T,Nichia 119A LEDs
  • FOV (Beam angle):many kinds
  • PRODUCT DATASHEET

    PRODUCT SERIES DATASHEET

Introduction :

Square 21.6x21.6mm,Height 12.79mm easily sealable TIR-lenses with tape for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

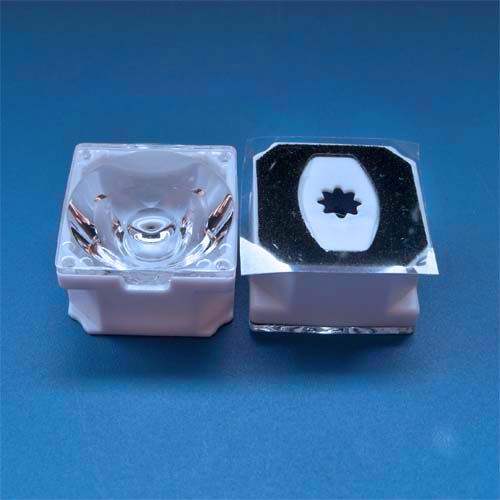

Square 21.6mm-6degree CREE XPE,OSRAM OSLON 3535,3030,LED Lens
HX-CR-6 (clear surface)
L 21.6
W 21.6
H 12.79
6° ( FWHM )

Square 21.6mm-6degree CREE XPE,OSRAM OSLON 3535,3030,LED Lens

HX-CR-6B (clear surface)
L 21.6
W 21.6
H 12.79
6° ( FWHM )

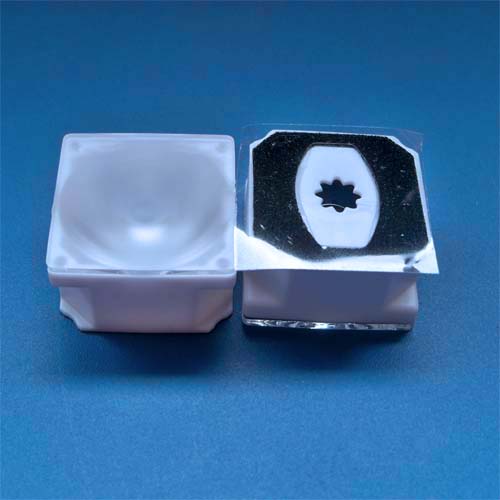

Square 21.6mm-12degree CREE XPE,OSRAM OSLON 3535,3030,LED Lens

HX-CR-12M (frosted surface)
L 21.6
W 21.6
H 12.79
12° ( FWHM )

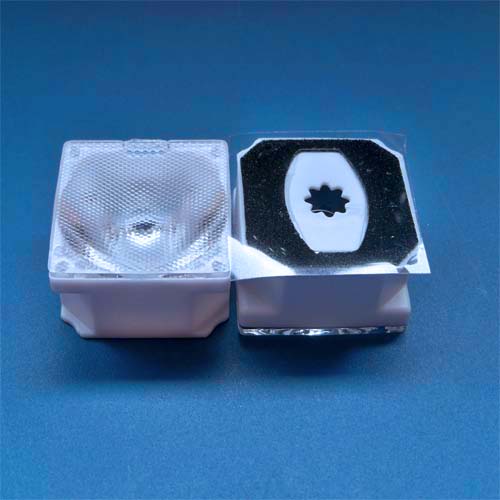

Square 21.6mm-30degree CREE XPE,OSRAM OSLON 3535,3030,LED Lens
HX-CR-30L (beads surface)
L 21.6
W 21.6
H 12.79
30° ( FWHM )
Square 21.6mm-48degree CREE XPE,OSRAM OSLON 3535,3030,LED Lens
HX-CR-48L (beads surface)
L 21.6
W 21.6
H 12.79
48° ( FWHM )

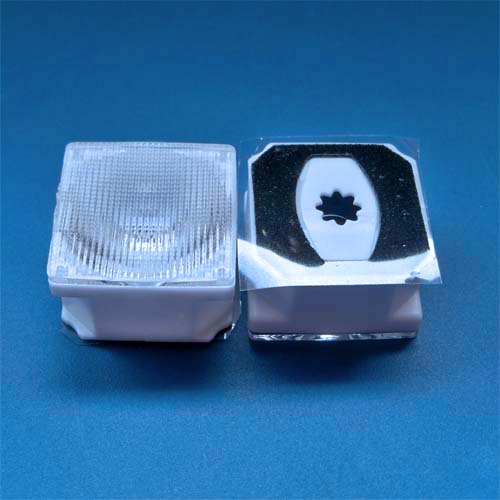

Square 21.6mm-10x60degree CREE XPE,OSRAM OSLON 3535,3030,LED Lens
HX-CR-1248 (Ripple Linear)
HX-CR-1060 (Ripple Linear)
HX-CR-1090 (Ripple Linear)
L 21.6
W 21.6
H 12.79
12(±5) x 48(±5)
10(±5) x 60(±5)
10(±5) x 90(±5)





























Purchase: info@opticsledlens.com
