Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 Single LED LensesDiameter 21.5mm LED lens for CREE XBD| OSRAM OSLON 3030 LEDs(HX-CSPA Series)
- Model:HX-CSPA Series LED Lens
- Dimension:Dia.21.5 x H12.75mm
- Transmittance:93%
- For LED:CREE XBD,XQE LEDs
- FOV (Beam angle):many kinds
Introduction :
Diameter 21.5mm,Height 12.75mm easily sealable TIR-lenses for up to 3030,2525 size LED packages.For example :
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul 3030;
Luxeon 3030;
LG 3030, Samsung 3030;
3030,2525 LEDs;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|

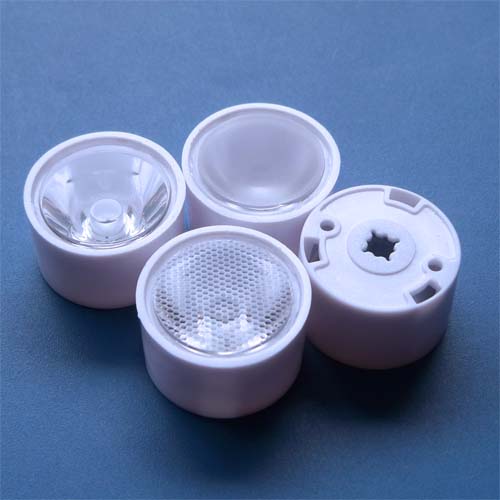

HX-CSPA-5 (clear surface)
HX-CSPA-5L (beads surface) HX-CSPA-5M (frosted surface) |
￠21.50
H 12.75 (with holder) |
5°
|
|
|
|
HX-CSPA-10 (clear surface)
HX-CSPA-10L (beads surface) HX-CSPA-10M (frosted surface) |
￠21.50
H 12.75 (with holder) |
10°
|
|
|
|
HX-CSPA-15 (clear surface)
HX-CSPA-15L (beads surface) HX-CSPA-15M (frosted surface) |
￠21.50
H 12.75 (with holder) |
15°
|
|
|
|
HX-CSPA-20 (clear surface)
HX-CSPA-20L (beads surface) HX-CSPA-20M (frosted surface) |
￠21.50
H 12.75 (with holder) |
20°
|
|
|
|
HX-CSPA-25 (clear surface)
HX-CSPA-25L (beads surface) HX-CSPA-25M (frosted surface) |
￠21.50
H 12.75 (with holder) |
25°
|
|
|
|
HX-CSPA-30 (clear surface)
HX-CSPA-30L (beads surface) HX-CSPA-30M (frosted surface) |
￠21.50
H 12.75 (with holder) |
30°
|
|
|
|
HX-CSPA-38 (clear surface)
HX-CSPA-38L (beads surface) HX-CSPA38M (frosted surface) |
￠21.50
H 12.75 (with holder) |
38°
|
|
|
|
HX-CSPA-45 (clear surface)
HX-CSPA-45L (beads surface) HX-CSPA-45M (frosted surface) |
￠21.50
H 12.75 (with holder) |
45°
|
|
|
|
HX-CSPA-60 (clear surface)
HX-CSPA-60L (beads surface) HX-CSPA-60M (frosted surface) |
￠21.50
H 12.75 (with holder) |
60°
|
|
|
|
HX-CSPA-85 (clear surface)
HX-CSPA-85L (beads surface) HX-CSPA-85M (frosted surface) |
￠21.50
H 12.75 (with holder) |
85°
|
|
|
|
HX-CSPA-100 (clear surface)
HX-CSPA-100L (beads surface) HX-CSPA-100M (frosted surface) |
￠21.50
H 12.75 (with holder) |
100°
|
|
|

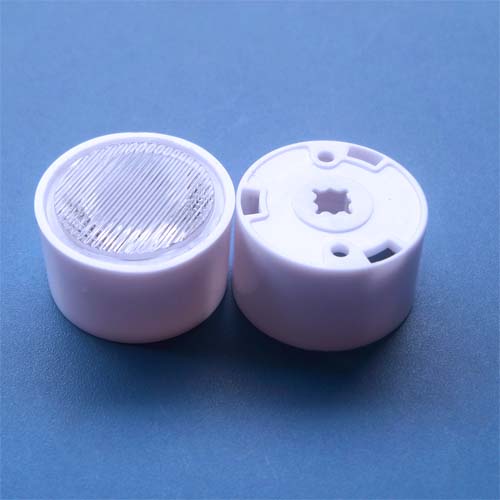

HX-CSPA-0545 (Ripple Linear)
HX-CSPA-1045 (Ripple Linear) HX-CSPA-1545 (Ripple Linear) HX-CSPA-2060 (Ripple Linear) HX-CSPA-3060 (Ripple Linear) |
￠21.50
H 12.75 (with holder) |
5(±5) x 45(±5)
10(±5) x 45(±5) 15(±5) x 45(±5) 20(±5) x 60(±5) 30(±5) x 60(±5) |
|
|
|
|
|
||
|
