Diameter 22mm LED lens with tape for CREE XPL LEDs(HX-CPA Series)

Diameter 22mm LED lens with tape for CREE XPL LEDs(HX-CPA Series)
  • Model:HX-CPA Series LED Lens
  • Dimension:Dia.22.0 x H11.3mm
  • Transmittance:93%
  • For LED:CREE XPL,XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
  • FOV (Beam angle):many kinds
  • PRODUCT DATASHEET

    PRODUCT SERIES DATASHEET

Introduction :

Diameter 22 mm easily sealable TIR-lenses with tape for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XPL;
CREE XHP35;



Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

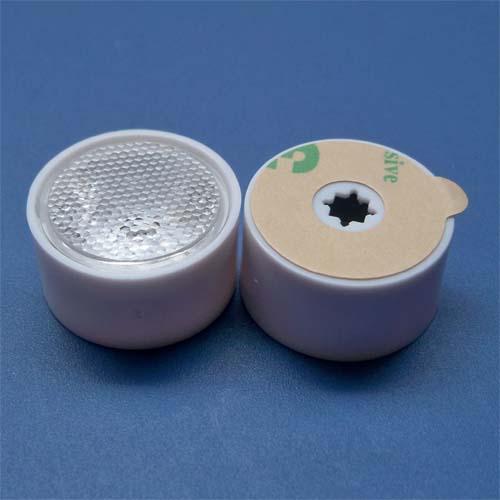

22mm-30degree CREE XHP35,XPL 3535 LED Lens
HX-CPA-30L (beads surface)
¢22.0
H 11.30
(with holder)
30°

22mm-45degree CREE XHP35,XPL 3535 LED Lens

HX-CPA-45L (beads surface)
¢22.0
H 11.30
(with holder)
45°

22mm-45degree CREE XHP35,XPL 3535 LED Lens
HX-CPA-60L (beads surface)
¢22.0
H 11.30
(with holder)
60°

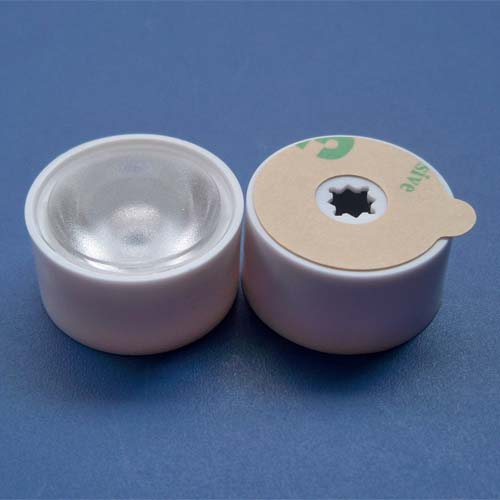

22mm-90degree CREE XHP35,XPL 3535 LED Lens
HX-CPA-90M (frosted surface)
¢22.0
H 11.30
(with holder)
90°





Purchase: info@opticsledlens.com
