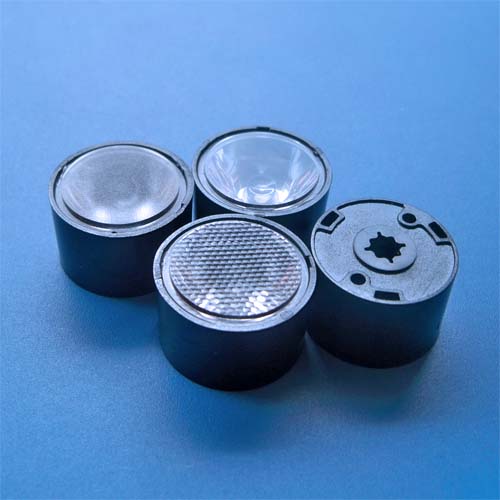

Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 Single LED LensesDiameter 21.5mm LED lens for CREE XPE| Luxeon T,SeoulZ5P 3535 LEDs(HX-CSP Series)
- Model:HX-CSP Series LED Lens
- Dimension:Dia.21.5 x H12.75mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :
Diameter 21.5mm,Height 12.75mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-CSP-5 (clear surface)
HX-CSP-5L (beads surface) HX-CSP-5M (frosted surface) |
￠21.50
H 12.75 (with holder) |
5°
|
|
|
|
HX-CSP-10 (clear surface)
HX-CSP-10L (beads surface) HX-CSP-10M (frosted surface) |
￠21.50
H 12.75 (with holder) |
10°
|
|
|
|
HX-CSP-15 (clear surface)
HX-CSP-15L (beads surface) HX-CSP-15M (frosted surface) |
￠21.50
H 12.75 (with holder) |
15°
|
|
|
|
HX-CSP-20 (clear surface)
HX-CSP-20L (beads surface) HX-CSP-20M (frosted surface) |
￠21.50
H 12.75 (with holder) |
20°
|
|
|
|
HX-CSP-25 (clear surface)
HX-CSP-25L (beads surface) HX-CSP-25M (frosted surface) |
￠21.50
H 12.75 (with holder) |
25°
|
|
|
|
HX-CSP-30 (clear surface)
HX-CSP-30L (beads surface) HX-CSP-30M (frosted surface) |
￠21.50
H 12.75 (with holder) |
30°
|
|
|
|
HX-CSP-38 (clear surface)
HX-CSP-38L (beads surface) HX-CSP-38M (frosted surface) |
￠21.50
H 12.75 (with holder) |
38°
|
|
|
|
HX-CSP-45 (clear surface)
HX-CSP-45L (beads surface) HX-CSP-45M (frosted surface) |
￠21.50
H 12.75 (with holder) |
45°
|
|
|
|
HX-CSP-60 (clear surface)
HX-CSP-60L (beads surface) HX-CSP-60M (frosted surface) |
￠21.50
H 12.75 (with holder) |
60°
|
|
|
|
HX-CSP-85 (clear surface)
HX-CSP-85L (beads surface) HX-CSP-85M (frosted surface) |
￠21.50
H 12.75 (with holder) |
85°
|
|
|
|
HX-CSP-100 (clear surface)
HX-CSP-100L (beads surface) HX-CSP-100M (frosted surface) |
￠21.50
H 12.75 (with holder) |
100°
|
|
|
HX-CSP-0545 (Ripple Linear)
HX-CSP-1045 (Ripple Linear) HX-CSP-1545 (Ripple Linear) HX-CSP-2060 (Ripple Linear) HX-CSP-3060 (Ripple Linear) |
￠21.50
H 12.75 (with holder) |
5(±5) x 45(±5)
10(±5) x 45(±5) 15(±5) x 45(±5) 20(±5) x 60(±5) 30(±5) x 60(±5) |
|
|
|
|
|
||
|
Purchase: info@opticsledlens.com |
||||
