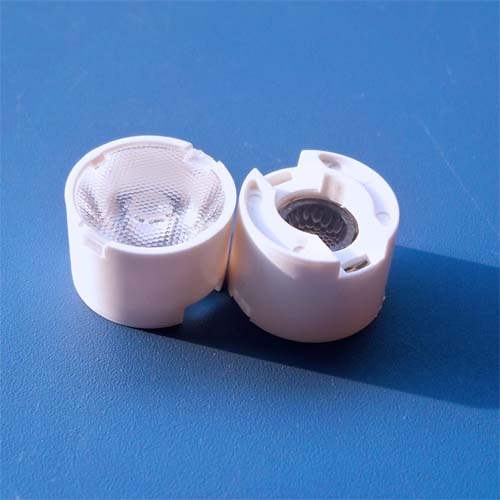

Diameter 15.2mm LED lens for Luxeon,Edixeon,Seoul,Prolight LEDs(HX-LM15 Series)

• Model:HX-LM15 Series LED Lens
• Dimension:Dia.15.26 x H10.36mm
• Transmittance:93%
• For LED:Luxeon|Edixeon|Seoul|Prolight LEDs
• FOV (Beam angle):many kinds

PRODUCT DATASHEET

PRODUCT SERIES DATASHEET

Introduction :

Diameter 15.26 mm easily sealable TIR-lenses for up to Luxeon,Seoul P4,Prolight,Edison LED .
For example :
LUXEON K1,K2 ;
PROLIGHT ;
SEOUL P4 ;
EDISON

Photo	Part No.	Dim. (mm)	Beam Angle (Field Angle)	Notes
	HX-LM15-15 (clear surface)	￠15.26 H 10.36 (with holder)	15°
	HX-LM15-30L (beads surface)	￠15.26 H 10.36 (with holder)	30°
	HX-LM15-45L (beads surface)	￠15.26 H 10.36 (with holder)	45°
	HX-LM15-90L (beads surface)	￠15.26 H 10.36 (with holder)	90°
	HX-LM15-F2 (Ripple Linear)	￠15.26 H 10.36 (with holder)	15(±5) x 60(±5)
Purchase: info@opticsledlens.com
