Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 LED Multi-Lens4in1- Diameter 32mm multi LED lens for CREE XPE\ OSRAM Square,3535,3030 LEDs(HX-C32x4H Series)

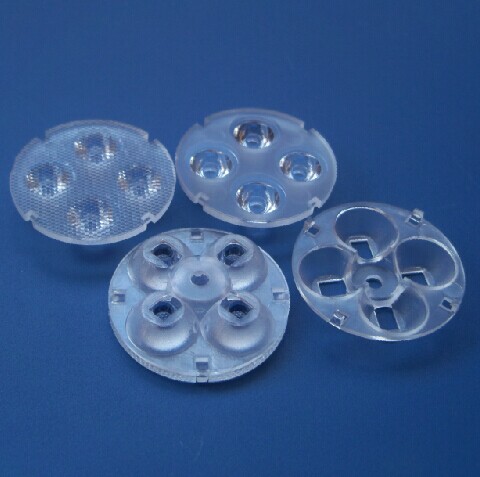

- Model:HX-C32x4H Series LED Lens
- Dimension:Dia.32 x H8.05mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :
4in1- Diameter 32.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-C32x4H-10(clear surface)
HX-C32x4H-10L (beads surface) HX-C32x4H-10M (frosted surface) |
￠32.0
H 8.05 |
10°
|
|
|
|
HX-C32x4H-15(clear surface)
HX-C32x4H-15L (beads surface) HX-C32x4H-15M (frosted surface) |
￠32.0
H 8.05 |
15°
|
|
|
|
HX-C32x4H-25(clear surface)
HX-C32x4H-25L (beads surface) HX-C32x4H-25M (frosted surface) |
￠32.0
H 8.05 |
25°
|
|
|
|
HX-C32x4H-30(clear surface)
HX-C32x4H-30L (beads surface) HX-C32x4H-30M (frosted surface) |
￠32.0
H 8.05 |
30°
|
|
|
|
HX-C32x4H-38(clear surface)
HX-C32x4H-38L (beads surface) HX-C32x4H-38M (frosted surface) |
￠32.0
H 8.05 |
38°
|
|
|
|
HX-C32x4H-45(clear surface)
HX-C32x4H-45L (beads surface) HX-C32x4H-45M (frosted surface) |
￠32.0
H 8.05 |
45°
|
|
|
|
HX-C32x4H-60(clear surface)
HX-C32x4H-60L (beads surface) HX-C32x4H-60M (frosted surface) |
￠32.0
H 8.05 |
60°
|
|
|
|
HX-C32x4H-75(clear surface)
HX-C32x4H-75L (beads surface) HX-C32x4H-75M (frosted surface) |
￠32.0
H 8.05 |
75°
|
|
|
|
HX-C32x4H-90(clear surface)
HX-C32x4H-90L (beads surface) HX-C32x4H-90M (frosted surface) |
￠32.0
H 8.05 |
90°
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
