Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 LED Multi-Lens5in1- Diameter 50mm multi LED lens for CREE XPE| OSRAM Square,3535,3030 LEDs(HX-C50x5 Series)
- Model:HX-C50x5 Series LED Lens
- Dimension:Dia.50 x H10.0mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :

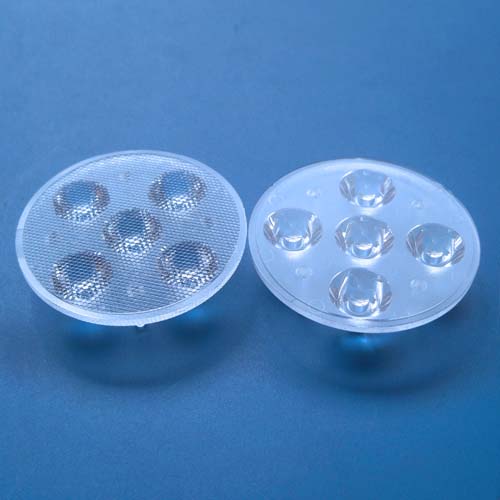

5in1- Diameter 50.0mm ,Height 10.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-C50x5-10(clear surface)
HX-C50x5-10L (beads surface) HX-C50x5-10M (frosted surface) |
￠50.0
H 10.0 |
10°
|
|
|
|
HX-C50x5-15(clear surface)
HX-C50x5-15L (beads surface) HX-C50x5-15M (frosted surface) |
￠50.0
H 10.0 |
15°
|
|
|
|
HX-C50x5-25(clear surface)
HX-C50x5-25L (beads surface) HX-C50x5-25M (frosted surface) |
￠50.0
H 10.0 |
25°
|
|
|
|
HX-C50x5-30(clear surface)
HX-C50x5-30L (beads surface) HX-C50x5-30M (frosted surface) |
￠50.0
H 10.0 |
30°
|
|
|
|
HX-C50x5-38(clear surface)
HX-C50x5-38L (beads surface) HX-C50x5-38M (frosted surface) |
￠50.0
H 10.0 |
38°
|
|
|
|
HX-C50x5-45(clear surface)
HX-C50x5-45L (beads surface) HX-C50x5-45M (frosted surface) |
￠50.0
H 10.0 |
45°
|
|
|
|
HX-C50x5-60(clear surface)
HX-C50x5-60L (beads surface) HX-C50x5-60M (frosted surface) |
￠50.0
H 10.0 |
60°
|
|
|
|
HX-C50x5-75(clear surface)
HX-C50x5-75L (beads surface) HX-C50x5-75M (frosted surface) |
￠50.0
H 10.0 |
75°
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
