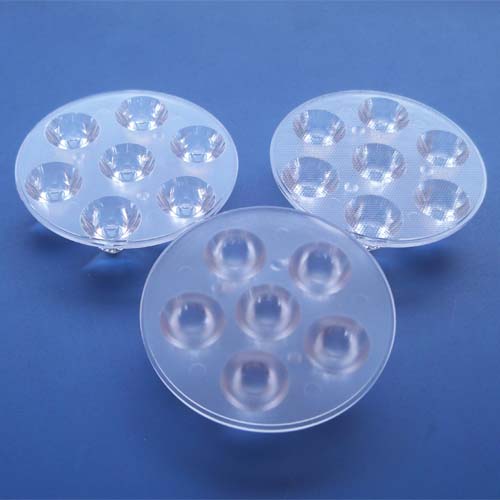

Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 LED Multi-Lens7in1- Diameter 67mm multi LED lens for OSRAM Square,CREE XPE,3535,3030,LEDs(HX-C67x7 Series)
- Model:HX-C67x7 Series LED Lens
- Dimension:Dia.67 x H12.5mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :
7in1- Diameter 67.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-C67x7-5 (clear surface)
HX-C67x7-5L (beads surface) HX-C67x7-5M (frosted surface) |
￠67.0
H 12.5 |
5°
|
|
|
|
HX-C67x7-10 (clear surface)
HX-C67x7-10L (beads surface) HX-C67x7-10M (frosted surface) |
￠67.0
H 12.5 |
10°
|
|
|
|
HX-C67x7-15 (clear surface)
HX-C67x7-15L (beads surface) HX-C67x7-15M (frosted surface) |
￠67.0
H 12.5 |
15°
|
|
|
|
HX-C67x7-25 (clear surface)
HX-C67x7-25L (beads surface) HX-C67x7-25M (frosted surface) |
￠67.0
H 12.5 |
25°
|
|
|
|
HX-C67x7-30 (clear surface)
HX-C67x7-30L (beads surface) HX-C67x7-30M (frosted surface) |
￠67.0
H 12.5 |
30°
|
|
|
|
HX-C67x7-38 (clear surface)
HX-C67x7-38L (beads surface) HX-C67x7-38M (frosted surface) |
￠67.0
H 12.5 |
38°
|
|
|
|
HX-C67x7-45 (clear surface)
HX-C67x7-45L (beads surface) HX-C67x7-45M (frosted surface) |
￠67.0
H 12.5 |
45°
|
|
|
|
HX-C67x7-60 (clear surface)
HX-C67x7-60L (beads surface) HX-C67x7-60M (frosted surface) |
￠67.0
H 12.5 |
60°
|
|
|
|
HX-C67x7-85 (clear surface)
HX-C67x7-85L (beads surface) HX-C67x7-85M (frosted surface) |
￠67.0
H 12.5 |
85°
|
|
|
|
HX-C67x7-100 (clear surface)
HX-C67x7-100L (beads surface) HX-C67x7-100M (frosted surface) |
￠67.0
H 12.5 |
100°
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
Purchase: info@opticsledlens.com |
||||
