Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 LED Multi-Lens9in1- Diameter 67mm multi LED lens for OSRAM Square,CREE XPE,3535,3030,LEDs(HX-C67x9 Series)

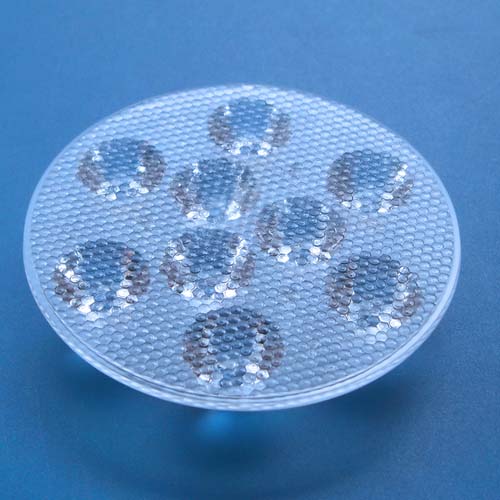

- Model:HX-C67x9 Series LED Lens
- Dimension:Dia.67 x H11.0mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :
9in1- Diameter 67.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-C67x9-10 (clear surface)
HX-C67x9-10L (beads surface) |
￠67.0
H 11.0 |
10°
|
|
|
|
HX-C67x9-15 (clear surface)
HX-C67x9-15L (beads surface) |
￠67.0
H 11.0 |
15°
|
|
|
|
HX-C67x9-25 (clear surface)
HX-C67x9-25L (beads surface) |
￠67.0
H 11.0 |
25°
|
|
|
|
HX-C67x9-30 (clear surface)
HX-C67x9-30L (beads surface) |
￠67.0
H 11.0 |
30°
|
|
|
|
HX-C67x9-38 (clear surface)
HX-C67x9-38L (beads surface) |
￠67.0
H 11.0 |
38°
|
|
|
|
HX-C67x9-45 (clear surface)
HX-C67x9-45L (beads surface) |
￠67.0
H 11.0 |
45°
|
|
|
|
HX-C67x9-60 (clear surface)
HX-C67x9-60L (beads surface) |
￠67.0
H 11.0 |
60°
|
|
|
|
HX-C67x9-75 (clear surface)
HX-C67x9-75L (beads surface) |
￠67.0
H 11.0 |
75°
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
