Introduction :

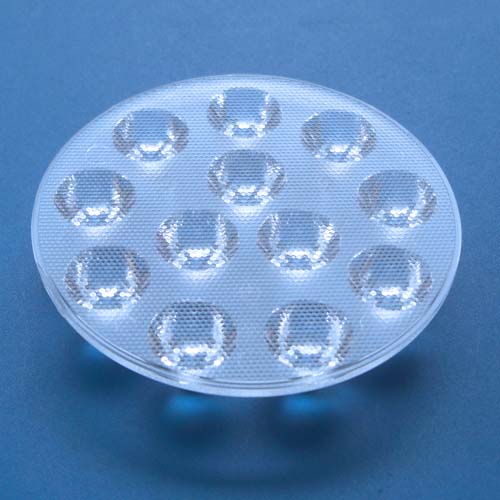

12in1- Diameter 67.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

12in1- 67mm-10degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x12-10 (clear surface)
HX-C67x12-10L (beads surface)
¢67.0
H 11.0
10°

12in1- 67mm-15degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens

HX-C67x12-15 (clear surface)
HX-C67x12-15L (beads surface)
¢67.0
H 11.0
15°

12in1- 67mm-25degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens

HX-C67x12-25 (clear surface)
HX-C67x12-25L (beads surface)
¢67.0
H 11.0
25°

12in1- 67mm-30degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x12-30 (clear surface)
HX-C67x12-30L (beads surface)
¢67.0
H 11.0
30°
12in1- 67mm-38degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x12-38 (clear surface)
HX-C67x12-38L (beads surface)
¢67.0
H 11.0
38°
12in1- 67mm-45degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x12-45 (clear surface)
HX-C67x12-45L (beads surface)
¢67.0
H 11.0
45°
12in1- 67mm-60degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x12-60 (clear surface)
HX-C67x12-60L (beads surface)
¢67.0
H 11.0
60°
12in1- 67mm-75degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x12-75 (clear surface)
HX-C67x12-75L (beads surface)
¢67.0
H 11.0
75°





















Purchase: info@opticsledlens.com
