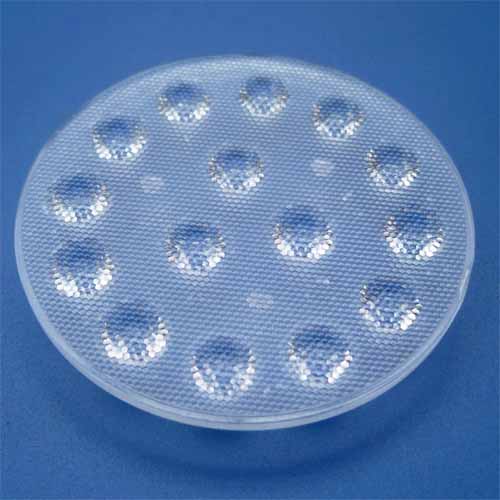

15in1- Diameter 67mm multi LED lens for OSRAM Square,CREE XPE,3535,3030,LEDs(HX-C67x15 Series)

15in1- Diameter 67mm multi LED lens for OSRAM Square,CREE XPE,3535,3030,LEDs(HX-C67x15 Series)

Introduction :

15in1- Diameter 67.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

15in1- 67mm-10degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-10 (clear surface)
HX-C67x15-10L (beads surface)
¢67.0
H 7.6
10°

15in1- 67mm-15degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens

HX-C67x15-15 (clear surface)
HX-C67x15-15L (beads surface)
¢67.0
H 7.6
15°

15in1- 67mm-25degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens

HX-C67x15-25 (clear surface)
HX-C67x15-25L (beads surface)
¢67.0
H 7.6
25°

15in1- 67mm-30degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-30 (clear surface)
HX-C67x15-30L (beads surface)
¢67.0
H 7.6
30°
15in1- 67mm-38degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-38 (clear surface)
HX-C67x15-38L (beads surface)
¢67.0
H 7.6
38°
15in1- 67mm-45degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-45 (clear surface)
HX-C67x15-45L (beads surface)
¢67.0
H 7.6
45°
15in1- 67mm-60degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-60 (clear surface)
HX-C67x15-60L (beads surface)
¢67.0
H 7.6
60°
15in1- 67mm-75degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-75 (clear surface)
HX-C67x15-75L (beads surface)
¢67.0
H 7.6
75°
15in1- 67mm-90degree CREE XPE,OSRAM OSLON 3535,3030,Multi LED Lens
HX-C67x15-90 (clear surface)
HX-C67x15-90L (beads surface)
¢67.0
H 7.6
90°
















Purchase: info@opticsledlens.com
