Diameter 23.85mm LED lens for Luxeon,Edixeon,Seoul,Prolight LEDs(HX-22.5 Series)

• Model:HX-22.5 Series LED Lens
• Dimension:Dia.23.85 x H13.5mm
• Transmittance:93%
• For LED:Luxeon|Edixeon|Seoul|Prolight LEDs(or RGB LED)
• FOV (Beam angle):many kinds

PRODUCT DATASHEET

PRODUCT SERIES DATASHEET

Introduction :

Diameter 23.85 mm easily sealable TIR-lenses for up to Luxeon,Seoul P4,Prolight,Edison LED .
For example :
LUXEON K1,K2 ;
PROLIGHT ;
SEOUL P4 ;
EDISON

Photo	Part No.	Dim. (mm)	Beam Angle (Field Angle)	Notes

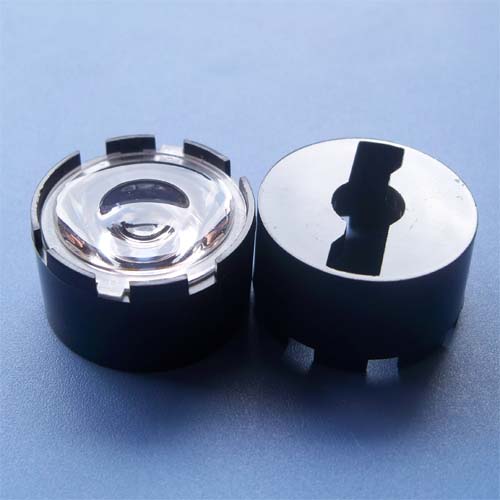

	HX-22.5-15 (clear surface) HX-22.5-15M (frosted surface)	￠23.85 H 13.50 (with holder)	15°

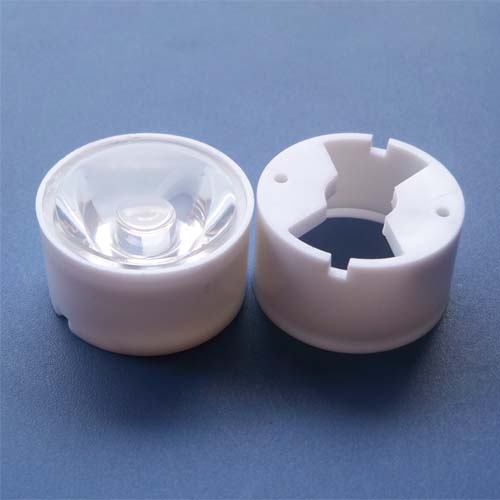

	HX-22.4-25H (clear surface)	￠24.6 H 13.52 (with holder)	25°

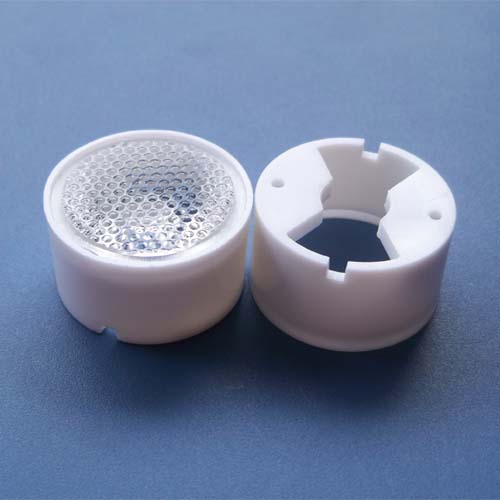

	HX-22.4-45L (beads surface)	￠23.85 H 13.50 (with holder)	45°

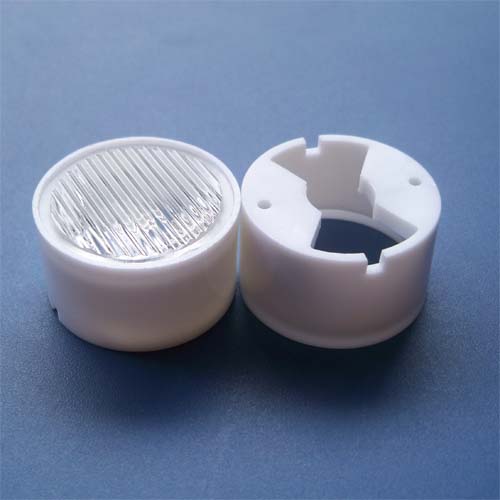

	HX-22.5-25F1 (Ripple Linear) HX-22.5-25F2 (Ripple Linear)	￠23.85 H 13.50 (with holder)	20(±5) x 55(±5) 20(±5) x 65(±5)
