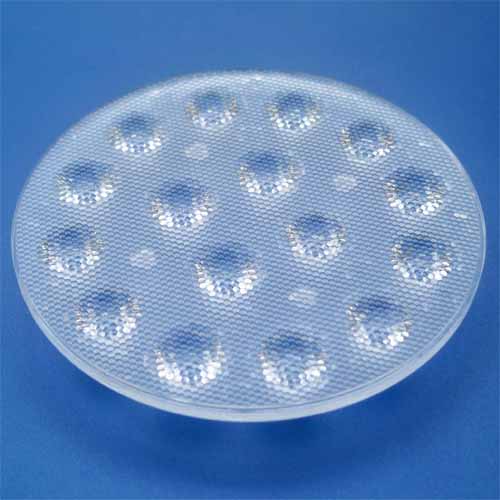

Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 LED Multi-Lens16in1 - Diameter 67mm multi LED lens for OSRAM Square,CREE XPE,3535,3030,LEDs(HX-C67x16 Series)
- Model:HX-C67x16 Series LED Lens
- Dimension:Dia.67 x H7.60mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :
16in1- Diameter 67.0mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-C67x16-10 (clear surface)
HX-C67x16-10L (beads surface) |
￠67.0
H 7.6 |
10°
|
|
|
|
HX-C67x16-15 (clear surface)
HX-C67x16-15L (beads surface) |
￠67.0
H 7.6 |
15°
|
|
|
|
HX-C67x16-25 (clear surface)
HX-C67x16-25L (beads surface) |
￠67.0
H 7.6 |
25°
|
|
|
|
HX-C67x16-30 (clear surface)
HX-C67x16-30L (beads surface) |
￠67.0
H 7.6 |
30°
|
|
|
|
HX-C67x16-38 (clear surface)
HX-C67x16-38L (beads surface) |
￠67.0
H 7.6 |
38°
|
|
|
|
HX-C67x16-45 (clear surface)
HX-C67x16-45L (beads surface) |
￠67.0
H 7.6 |
45°
|
|
|
|
HX-C67x16-60 (clear surface)
HX-C67x16-60L (beads surface) |
￠67.0
H 7.6 |
60°
|
|
|
|
HX-C67x16-75 (clear surface)
HX-C67x16-75L (beads surface) |
￠67.0
H 7.6 |
75°
|
|
|
|
HX-C67x16-90 (clear surface)
HX-C67x16-90L (beads surface) |
￠67.0
H 7.6 |
90°
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
