10mm square lens for SMD3030,3535,3528,5050 LEDs(HX-DN Series)

10mm square lens for  SMD3030,3535,3528,5050 LEDs(HX-DN Series)

Introduction :

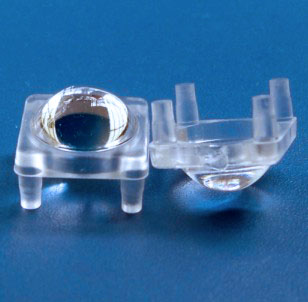

10 mm easily sealable lenses for up to SMD 3030,3528,3535,5050 size LED packages.
For example :
CREE MX-3 ,MX-6 ;
3030,3535,5050 LEDs;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

10mm- 40degree CREE MX-3,MX-6 5050 LED Lens
HX-DN-40 (clear surface)
L 10.0
W 10.0
H 7.0
40°

10mm- 50degree CREE MX-3,MX-6 5050 LED Lens

HX-DN-50 (clear surface)
L 10.0
W 10.0
H 6.4
50°

10mm- 60degree CREE MX-3,MX-6 5050 LED Lens
HX-DN-60 (clear surface)
L 10.0
W 10.0
H 5.58
60°

10mm- 70degree CREE MX-3,MX-6 5050 LED Lens
HX-DN-70 (clear surface)
L 10.0
W 10.0
H 4.83
70°
 10mm- 80degree CREE MX-3,MX-6 5050 LED Lens
HX-DN-80 (clear surface)
L 10.0
W 10.0
H 4.63
80°

Purchase: info@opticsledlens.com
