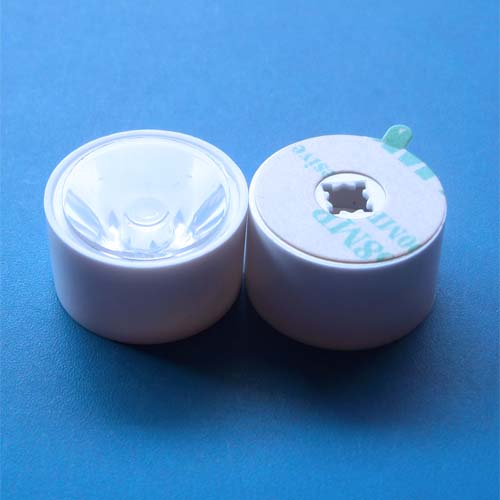

Product Name:Diameter 21.5mm LED lens with tape for CREE XPE| OSLON 3535,3030 LEDs(HX-CPM Series)

Diameter 21.5mm LED lens with tape for CREE XPE| OSLON 3535,3030 LEDs(HX-CPM Series)
  • Model:HX-CPM Series LED Lens
  • Dimension:Dia.21.5 x H11.5mm
  • Transmittance:93%
  • For LED:CREE XPL,XPE,XPG,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
  • FOV (Beam angle):many kinds
  • PRODUCT DATASHEET

    PRODUCT SERIES DATASHEET

Introduction :

Diameter 21.5mm,Height 11.5mm easily sealable TIR-lenses with tape for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

21.5mm-5degree OSRAM OSLON 3535,3030,2525 LED Lens
HX-CPM-5 (clear surface)
¢21.50
H 11.50
(with holder)
5° ( FWHM )

21.5mm-8degree OSRAM OSLON 3535,3030,2525 LED Lens

HX-CPM-8 (clear surface)
¢21.50
H 11.50
(with holder)
8° ( FWHM )

21.5mm-8degree OSRAM OSLON 3535,3030,2525 LED Lens

HX-CPM-15 (clear surface)

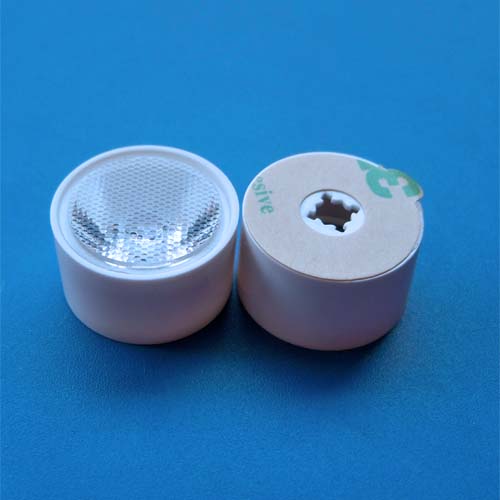

HX-CPM-15L (beads surface)
HX-CPM-15M (frosted surface)
¢21.50
H 11.50
(with holder)
15° ( FWHM )

21.5mm-25degree OSRAM OSLON 3535,3030,2525 LED Lens
HX-CPM-25L (beads surface)
¢21.50
H 11.50
(with holder)
25° ( FWHM )
21.5mm-25degree OSRAM OSLON 3535,3030,2525 LED Lens
HX-CPM-30L (beads surface)
¢21.50
H 11.50
(with holder)
30° ( FWHM )
21.5mm-25degree OSRAM OSLON 3535,3030,2525 LED Lens
HX-CPM-45L (beads surface)
¢21.50
H 11.50
(with holder)
45° ( FWHM )
21.5mm-25degree OSRAM OSLON 3535,3030,2525 LED Lens
HX-CPM-60L (beads surface)
¢21.50
H 11.50
(with holder)
60° ( FWHM )
21.5mm-10x60degree OSRAM OSLON 3535,3030,2525 LED Lens

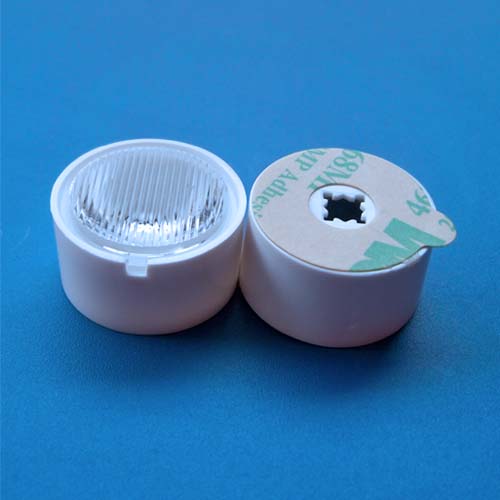

HX-CPM-1545 (Ripple Linear)
HX-CPM-1060 (Ripple Linear)
HX-CPM-1560 (Ripple Linear)
HX-CPM-2030 (Ripple Linear)
HX-CPM-3060 (Ripple Linear)
¢21.50
H 11.50
(with holder)
15(±5) x 45(±5)
10(±5) x 60(±5)
15(±5) x 60(±5)
20(±5) x 30(±5)
30(±5) x 60(±5)
