Product Name:Diameter 21.2mm LED lens for CREE XPL,XHP35 3535 LEDs(HX-CSYA Series)

Diameter 21.2mm LED lens for CREE XPL,XHP35 3535 LEDs(HX-CSYA Series)
  • Model:HX-CSYA Series LED Lens
  • Dimension:Dia.21.2 x H12.7mm
  • Transmittance:93%
  • For LED:CREE XPL,XPE,XPG,XTE,XHP35|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
  • FOV (Beam angle):many kinds
  • PRODUCT DATASHEET

    PRODUCT SERIES DATASHEET

Introduction :

Diameter 21.2mm,Height 12.7mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XHP35,XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

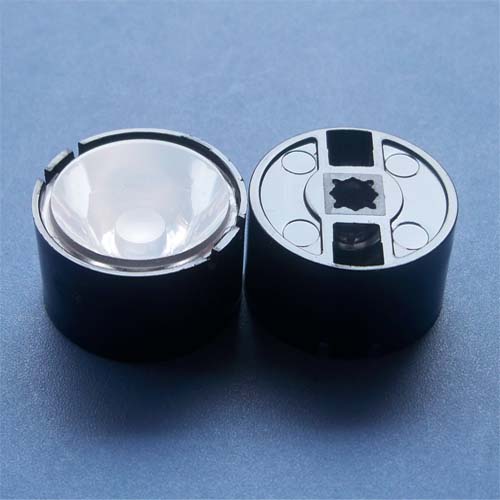

21.2mm-5degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-8 (clear surface)
¢21.20
H 12.7
(with holder)

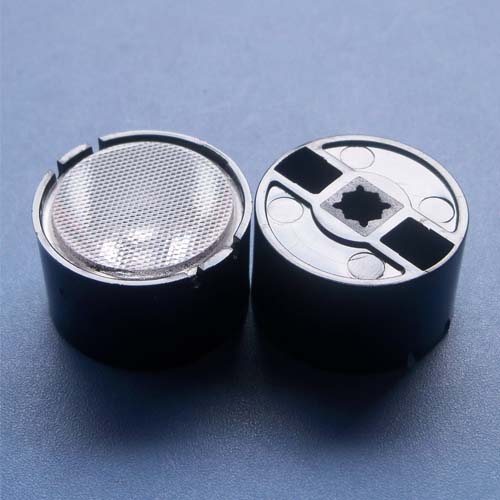

21.2mm-15degree CREE XHP35,XPL 3535 LED Lens

HX-CSYA-15L (beads surface)
¢21.20
H 12.7
(with holder)

15°

21.2mm-25degree CREE XHP35,XPL 3535 LED Lens

HX-CSYA-25L (beads surface)
¢21.20
H 12.7
(with holder)
25°

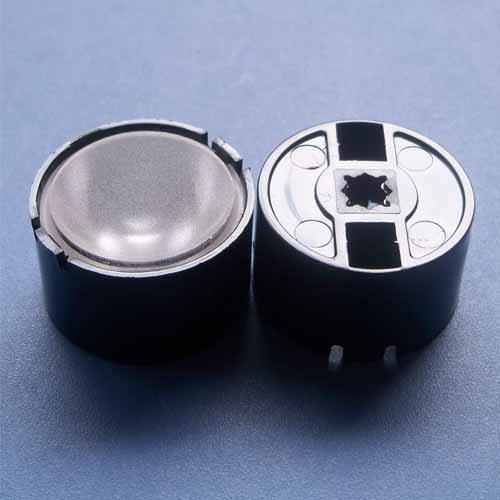

21.2mm-30degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-30M (frosted surface)
¢21.20
H 12.7
(with holder)
30°

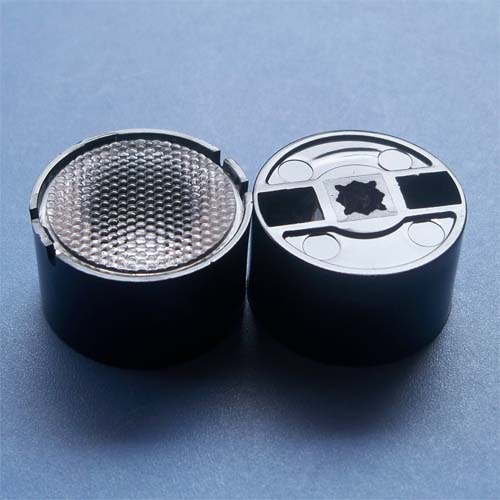

21.2mm-45degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-45L (beads surface)
¢21.20
H 12.7
(with holder)
45°

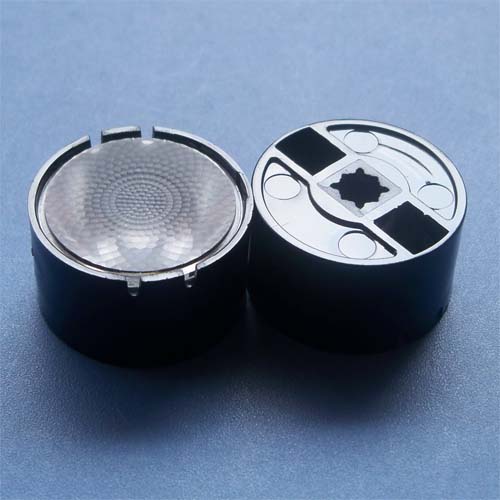

21.2mm-60degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-60L (beads surface)
¢21.20
H 12.7
(with holder)
60°
21.2mm-75degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-75M (frosted surface)
¢21.20
H 12.7
(with holder)
75°
21.2mm-90degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-90L (beads surface)
¢21.20
H 12.7
(with holder)
90°

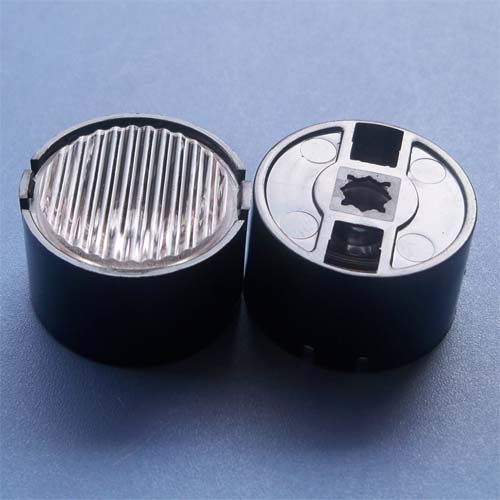

21.2mm-15x45degree CREE XHP35,XPL 3535 LED Lens
HX-CSYA-1555 (Ripple Linear)
HX-CSYA-1030 (Ripple Linear)
HX-CSYA-1045 (Ripple Linear)
HX-CSYA-1070 (Ripple Linear)
¢21.20
H 12.7
(with holder)
15(±5) x 55(±5)
10(±5) x 30(±5)
10(±5) x 45(±5)
10(±5) x 70(±5)
