Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT |5050 |3535 |3030 Waterproof LED LensesDiameter 13mm waterproof Led lens for CREE XHP35,XPE 3535 LEDs(HX-WP13 Series)
- Model:HX-WP13 Series LED Lens
- Dimension:Dia.13.0 H8.0mm
- Transmittance:93%
- For LED:CREE XHP35,XPE,XPG| 3535 LEDs
- FOV (Beam angle):many kinds
Introduction :
WP13 is a single molded piece optic family suitable for challenging environments and outdoor applications. Special attention has been paid to ensure easy ingress protection for applications requiring IP ratings up to IPX8,Easily sealable miniature optics for challenging environments and outdoor lighting .Diameter 13.0mm,Height 8.0mm easily sealable waterproof TIR-lenses for up to 3535 size LED packages.
For example :
CREE XHP35,XHP35-HI;
CREE XP-E,XP-G/G2,XP-L,XT-E;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|

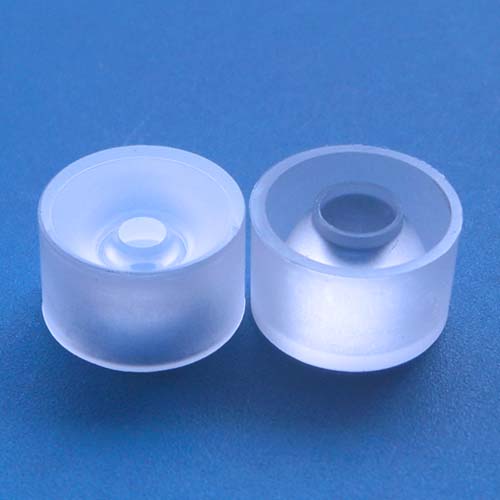

HX-WP13-10 (clear surface)
|
￠13.0
H 8.0 |
10°
|
|
|
|

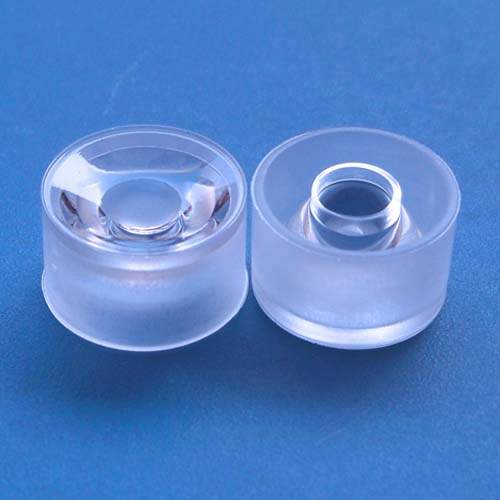

HX-WP13-25 (clear surface)
|
￠13.0
H 8.0 |
25°
|
|
|
|

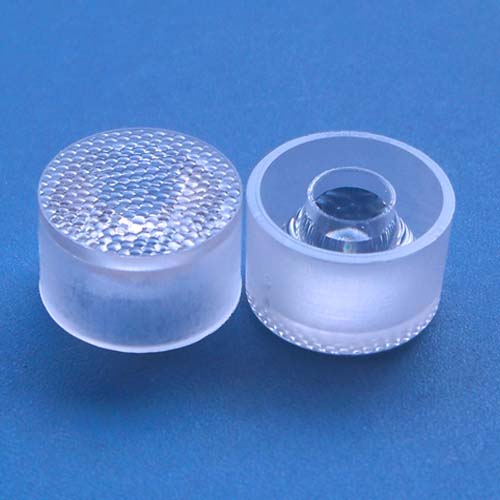

HX-WP13-45L(beads surface)
|
￠13.0
H 8.0 |
45°
|
|
|
HX-WP13-60L (beads surface)
|
￠13.0
H 8.0 |
60°
|
|
|
HX-WP13-90 (clear surface)
|
￠13.0
H 8.0 |
90°
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
