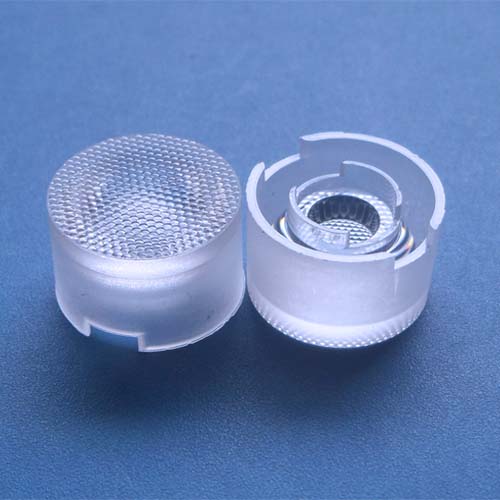

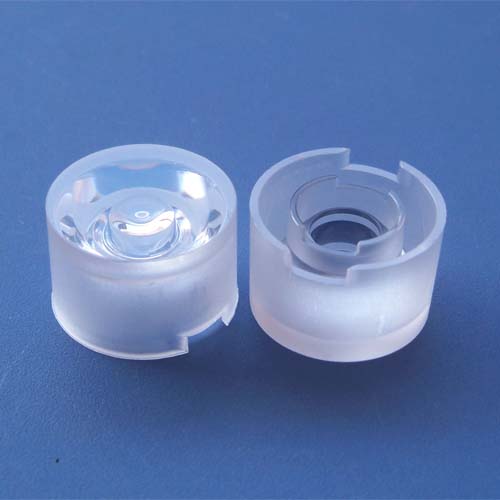

Diameter 15.3mm waterproof LED lens for LUXEON - PROLIGHT - SEOUL - EDISON (HX-15IP Series)

Diameter 15.3mm waterproof LED lens for LUXEON - PROLIGHT - SEOUL - EDISON (HX-15IP Series)

Introduction :

Diameter 15.30 mm easily sealable waterproof TIR-lenses for up to Luxeon,Seoul P4,Prolight,Edison LED .
For example :
LUXEON K1,K2 ;
PROLIGHT ;
SEOUL P4 ;
EDISON


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

15.3mm-20degree LUXEON - PROLIGHT- SEOUL- EDISON LED waterproof Lens
HX-15IP-20 (clear surface)
¢15.3
H 10.6
20°

15.3mm-45degree LUXEON - PROLIGHT- SEOUL- EDISON LED waterproof Lens

HX-15IP-45 (clear surface)

¢15.3
H 10.6

45°

15.3mm-90degree LUXEON - PROLIGHT- SEOUL- EDISON LED waterproof Lens

HX-IP-90L (beads surface)
¢15.3
H 10.6
90°



















Purchase: info@opticsledlens.com
