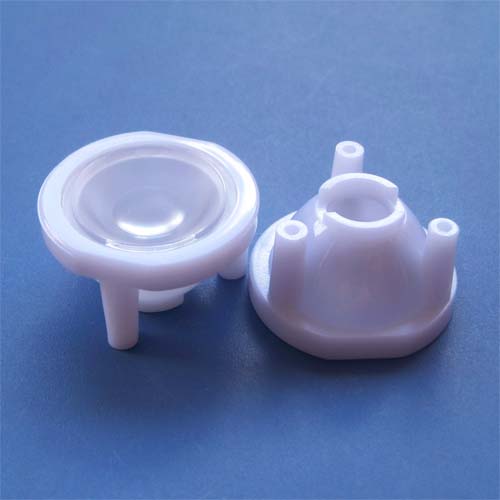

Home > Product > LED Lenses and LGP > LUXEON - PROLIGHT - SEOUL - EDISON | - LED Single LensesDiameter 25mm LED lens for LUXEON - PROLIGHT - SEOUL - EDISON (HX-25T Series)
- Model:HX-25T Series LED Lens
- Dimension:Dia.25 x H13.4mm
- Transmittance:93%
- For LED:Luxeon|Edixeon|Seoul|Prolight LEDs
- FOV (Beam angle):many kinds
Introduction :
Diameter 25.0mm easily sealable TIR-lenses for up to Luxeon,Seoul P4,Prolight,Edison LED .For example :
LUXEON K1,K2 ;
PROLIGHT ;
SEOUL P4 ;
EDISON
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-25T-5 (clear surface)
|
￠25.0
H 13.4 (with holder) |
5°
|
|
|
|
HX-25T-8 (clear surface)
|
￠25.0 |
8°
|
|
|
|
HX-25T-10 (clear surface)
|
￠25.0
H 13.4 (with holder) |
10°
|
|
|
|
HX-25T-15 (clear surface)
HX-25T-15H (clear surface) HX-25T-15M (frosted surface) |
￠25.0
H 13.4 (with holder) |
15°
|
|
|
|
HX-25T-20 (clear surface)
|
￠25.0
H 13.4 (with holder) |
20°
|
|
|
HX-25T-25 (clear surface)
HX-25T-25L (beads surface) HX-25T-25M (frosted surface) HX-25T-25MP (frosted surface) |
￠25.0
H 13.4 (with holder) |
25°
|
|
|
|
HX-25T-30 (clear surface)
HX-25T-30L (beads surface) HX-25T-30M (frosted surface) |
￠25.0
H 13.4 (with holder) |
30°
|
|
|
HX-25T-45 (clear surface)
HX-25T-45L (beads surface) HX-25T-45M (frosted surface) HX-25T-45MP (frosted surface) |
￠25.0
H 13.4 (with holder) |
45°
|
|
|
|
HX-25T-60 (clear surface)
HX-25T-60MP (frosted surface) |
￠25.0
H 13.4 (with holder) |
60°
|
|
|
|
HX-25T-90 (clear surface)
|
￠25.0
H 13.4 (with holder) |
90°
|
|
|
HX-25T-120 (clear surface)
HX-25T-120T (clear surface) HX-25T-120M (frosted surface) |
￠25.0
H 13.4 (with holder) |
120°
|
|
|
|
|
|
||
|
|
|
|
||
|
