Product Name:Diameter 21.2mm LED lens for CREE XBD,XQE,3030,2525 LEDs(HX-CSYB Series)

Diameter 21.2mm LED lens for CREE XBD,XQE,3030,2525 LEDs(HX-CSYB Series)

Introduction :

Diameter 21.2mm,Height 12.7mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul 3030;
Luxeon 3030;
LG 3030, Samsung 3030;
3030,2525 LEDs;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

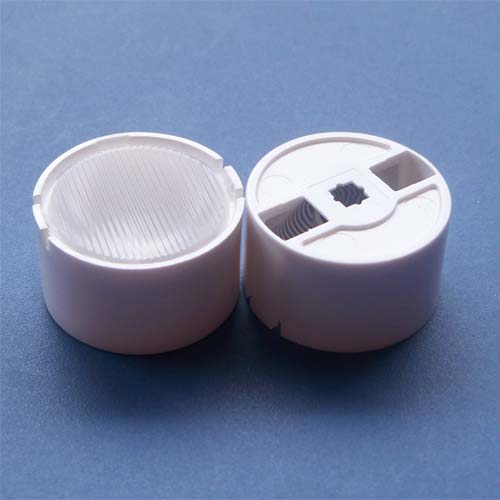

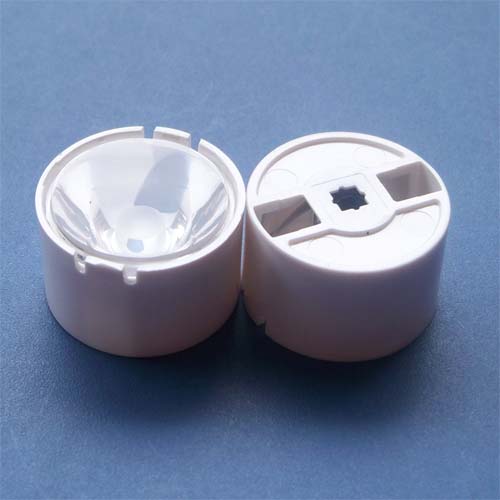

21.5mm-8degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-8 (clear surface)
¢21.20
H 12.7
(with holder)

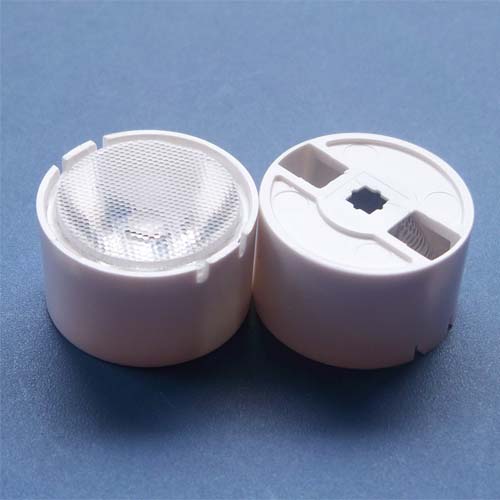

21.5mm-15degree OSRAM OSLON 3030,2525 LED Lens

HX-CSYB-15L (beads surface)
¢21.20
H 12.7
(with holder)
15°

21.5mm-25degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-25L (beads surface)
¢21.20
H 12.7
(with holder)
25°

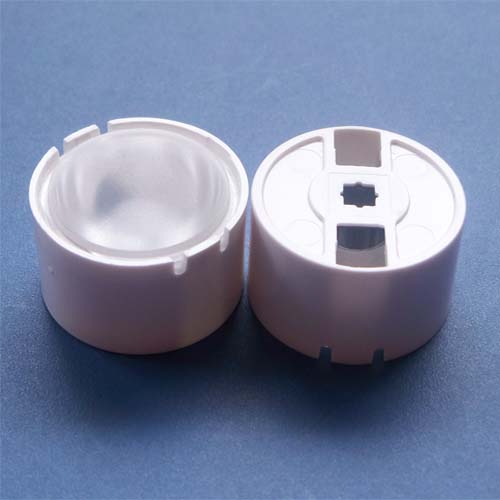

21.5mm-30degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-30M (frosted surface)
¢21.20
H 12.7
(with holder)
30°

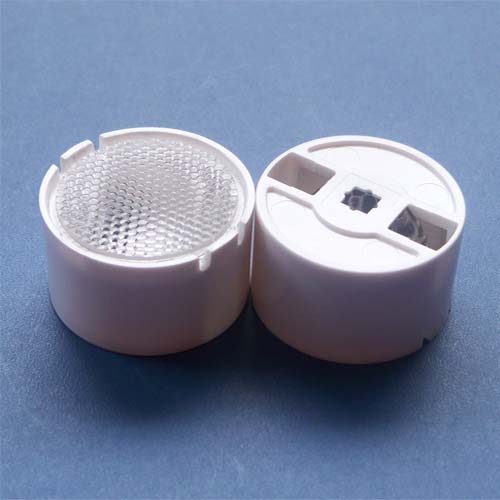

21.5mm-45degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-45L (beads surface)
¢21.20
H 12.7
(with holder)
45°

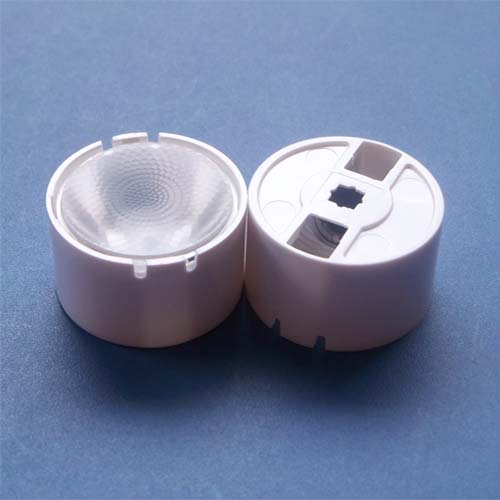

21.5mm-60degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-60L (beads surface)
¢21.20
H 12.7
(with holder)
60°
21.5mm-75degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-75M (frosted surface)
¢21.20
H 12.7
(with holder)
75°
21.5mm-90degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-90L (beads surface)
¢21.20
H 12.7
(with holder)
90°
21.5mm-10x60degree OSRAM OSLON 3030,2525 LED Lens
HX-CSYB-1555 (Ripple Linear)
HX-CSYB-1030 (Ripple Linear)
HX-CSYB-1045 (Ripple Linear)
HX-CSYB-1070 (Ripple Linear)
¢21.20
H 12.7
(with holder)
15(±5) x 55(±5)
10(±5) x 30(±5)
10(±5) x 45(±5)
10(±5) x 70(±5)

















Purchase: info@opticsledlens.com
