Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT |5050 |3535 |3030 Waterproof LED LensesDiameter 20.7mm waterproof Led lens for CREE XML| 5050 LEDs(HX-WPC Series)
- Model:HX-WPC Series LED Lens
- Dimension:Dia.20.68 x H12.4mm
- Transmittance:93%
- For LED:CREE XML-HI,XML2,Seoul MJT5050 LEDs
- FOV (Beam angle):many kinds
Introduction :
HX-WPC Series LED lens is a single molded piece optic family suitable for challenging environments and outdoor applications. Special attention has been paid to ensure easy ingress protection for applications requiring IP ratings up to IPX8,Easily sealable miniature optics for challenging environments and outdoor lighting .Diameter 20.3mm,Height 12.35mm easily sealable waterproof TIR-lenses for up to 5050 size LED packages.
For example :
CREE XML-HI,XML2 ;
Seoul Acriche A5,MJT 4040|5050;
Federal 5050;
High power 5050 LEDs;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-WPC-10(clear surface)
|
￠20.7
H 12.35 |
10°
|
|
|

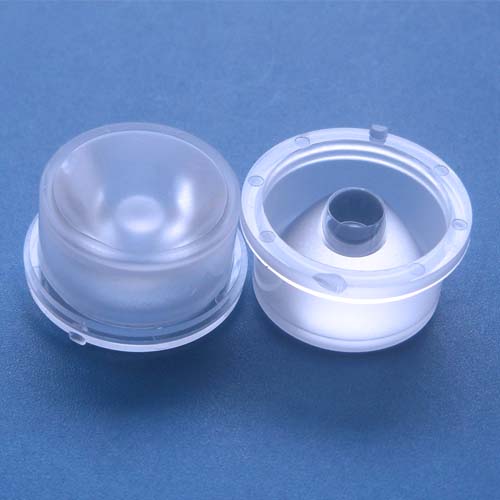

HX-WPC-15M (frosted surface)
|
￠20.7
H 12.35 |
15°
|
|
|
|

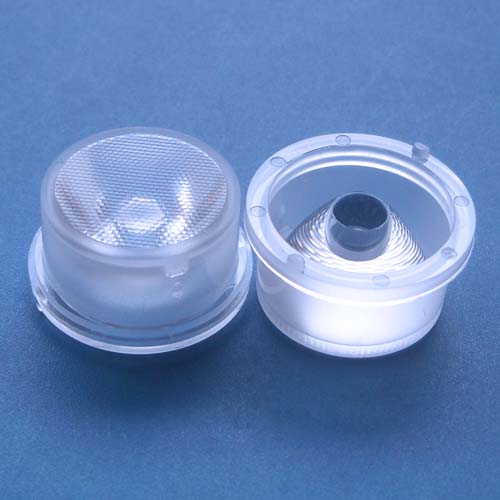

HX-WPC-25L(beads surface)
|
￠20.7
H 12.35 |
25°
|
|
|
|
HX-WPC-30M(frosted surface)
|
￠20.7
H 12.35 |
30°
|
|
|
HX-WPC-38L(beads surface)
|
￠20.7
H 12.35 |
38°
|
|
|
|
HX-WPC-60L(beads surface)
|
￠20.7
H 12.35 |
60°
|
|
|

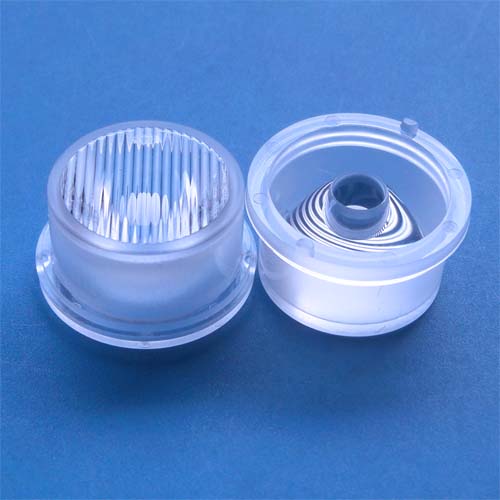

HX-WPC-0840 (Ripple Linear)
HX-WPC-0865 (Ripple Linear) HX-WPC-1030 (Ripple Linear) HX-WPC-1065 (Ripple Linear) HX-WPC-2045 (Ripple Linear) HX-WPC-2065 (Ripple Linear) |
￠20.7
H 12.35 |
8(±5) x 40(±5)
8(±5) x 65(±5) 10(±5) x 30(±5) 10(±5) x 65(±5) 20(±5) x 45(±5) 20(±5) x 65(±5) |
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
