Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 Single LED LensesDiameter 37mm LED lens for CREE XHP35-HI,XPL-HI,,Luxeon T,SeoulZ5P LEDs(HX-37HP Series)
- Model:HX-37HP Series LED Lens
- Dimension:Dia.37.0 x H19.0mm
- Transmittance:93%
- For LED:CREE XHP35-HI,XPL-HI,XTE|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
- FOV (Beam angle):many kinds
Introduction :

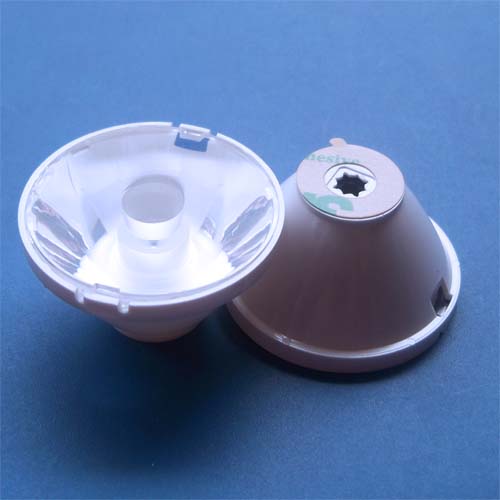

Diameter 37.0mm,Height 19.0mm easily sealable TIR-lenses with tape for up to 3535 size LED packages.For example :
CREE XHP35,XHP35-HI;
CREE XP-E,XP-G/G2,XP-L,XT-E;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-37HP-5 (clear surface)
|
￠37.0
H 19.0 (with holder) |
5° ( FWHM )
|
|
|
|
HX-37HP-8 (clear surface)
|
￠37.0
H 19.0 (with holder) |
8° ( FWHM )
|
|
|
|
HX-37HP-12L (beads surface)
|
￠37.0
H 19.0 (with holder) |
12° ( FWHM )
|
|
|
|
HX-37HP-20L (beads surface)
|
￠37.0
H 19.0 (with holder) |
20° ( FWHM )
|
|
|
|
HX-37HP-25L (beads surface)
|
￠37.0
H 19.0 (with holder) |
25° ( FWHM )
|
|
|
HX-37HP-38L (beads surface)
|
￠37.0
H 19.0 (with holder) |
38° ( FWHM )
|
|
|
|
HX-37HP-60L (beads surface)
|
￠37.0
H 19.0 (with holder) |
60° ( FWHM )
|
|
|
HX-37HP-1030 (Ripple Linear)
|
￠37.0
H 19.0 (with holder) |
10(±5) x 30(±5)
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
