Diameter 23.3mm cone LED lens for CREE XHP35,XPL 3535 LEDs(HX-MCV Series)

Diameter 23.3mm cone LED lens for CREE XHP35,XPL 3535 LEDs(HX-MCV Series)
  • Model:HX-MCV Series LED Lens
  • Dimension:Dia.23.3.x H12.65mm
  • Transmittance:93%
  • For LED:CREE XPE,XPG,XTE,XHP35|Seoul Z5P|OSRAM CP7P|Luxeon T LEDs
  • FOV (Beam angle):many kinds
  • PRODUCT DATASHEET

    PRODUCT SERIES DATASHEET

Introduction :

Diameter 23.3mm easily sealable TIR-lenses for up to 3535 ,3030,2525 size LED packages.
For example :
CREE XHP35,XP-E,XP-G/G2,XP-L,XT-E;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;


Part No.

Dim. (mm)

Beam Angle
(Field Angle)

Notes

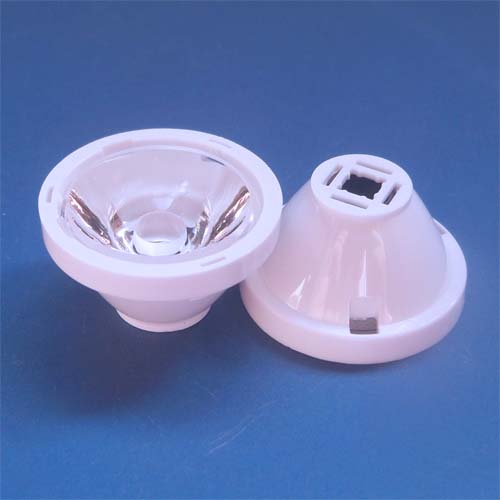

23.3mm-10degree CREE XHP35,XPL 3535 LED Lens
HX-MCV-10 (clear surface)
¢23.3
H 12.65
(with holder)
10°

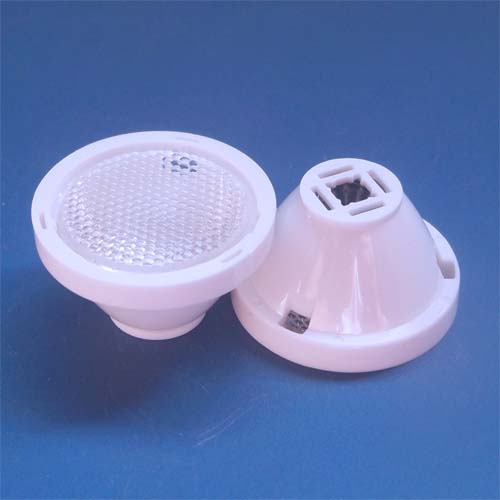

23.3mm-25degree CREE XHP35,XPL 3535 LED Lens

HX-MCV-25L (beads surface)
¢23.3
H 12.65
(with holder)
25°

23.3mm-40degree CREE XHP35,XPL 3535 LED Lens
HX-MCV-40L (beads surface)
¢23.3
H 12.65
(with holder)
40°

 23.3mm-40degree CREE XHP35,XPL 3535 LED Lens
HX-MCV-60L (beads surface)
¢23.3
H 12.65
(with holder)
60°





Purchase: info@opticsledlens.com
