Diameter 16.5mm LED lens for Luxeon,Edixeon,Seoul,Prolight LEDs(HX-17 Series)

• Model:HX-17 Series LED Lens
• Dimension:Dia.16.5 x H12.3mm
• Transmittance:93%
• For LED:Luxeon|Edixeon|Seoul|Prolight LEDs
• FOV (Beam angle):many kinds

PRODUCT DATASHEET

PRODUCT SERIES DATASHEET

Introduction :

Diameter 16.50 mm easily sealable TIR-lenses for up to Luxeon,Seoul P4,Prolight,Edison LED .
For example :
LUXEON K1,K2 ;
PROLIGHT ;
SEOUL P4 ;
EDISON

Photo	Part No.	Dim. (mm)	Beam Angle (Field Angle)	Notes

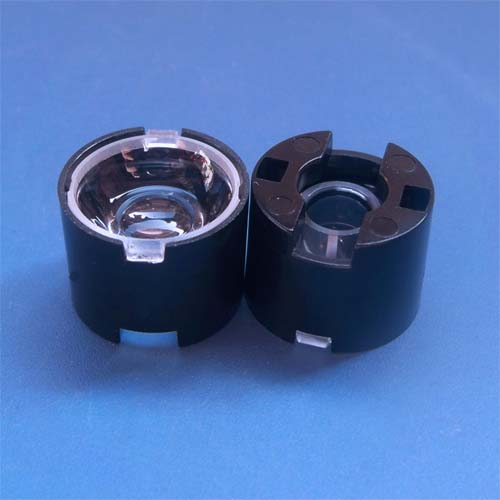

	HX-17-15 (clear surface)	￠16.50 H 12.30 (with holder)	15°

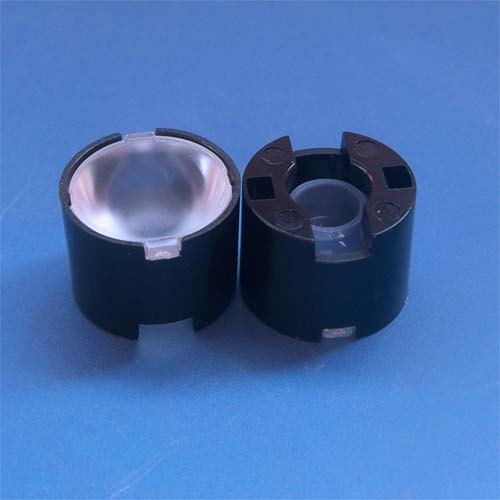

	HX-17-30 (clear surface)	￠16.50 H 12.30 (with holder)	30°

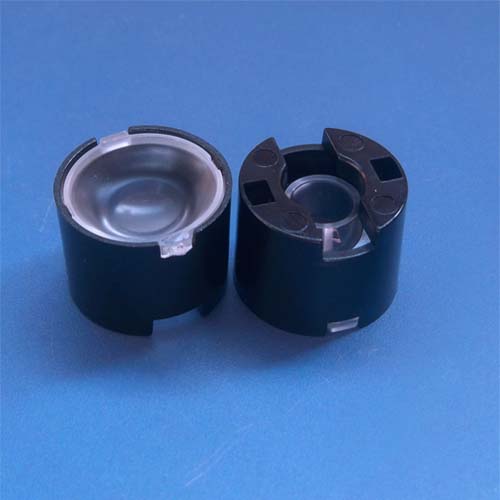

	HX-17-45 (clear surface)	￠16.50 H 12.30 (with holder)	45°
	HX-17-60M (frosted surface)	￠16.50 H 12.30 (with holder)	60°
	HX-17-90M (frosted surface)	￠16.50 H 12.30 (with holder)	90°
Purchase: info@opticsledlens.com
