Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT | 3535| 3030 Single LED LensesDiameter 15.55mm LED lens for OSRAM OSLON,SQUARE LEDs(HX-IR15 Series)
- Model:HX-IR15 Series LED Lens
- Dimension:Dia.15.55 x H9.06mm
- Transmittance:93%
- For LED:OSRAM SSL80,SSL150|Square LEDs
- FOV (Beam angle):many kinds
Introduction :
Diameter 15.55mm,Height 9.06mm easily sealable TIR-lenses with tape for up to 3535 ,3030,2525 size LED packages.For example :
CREE XP-E,XP-G/G2,XP-L,XT-E;
CREE XB-D,XQ-E;
OSRAM SSL80,SSL150,Square;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|

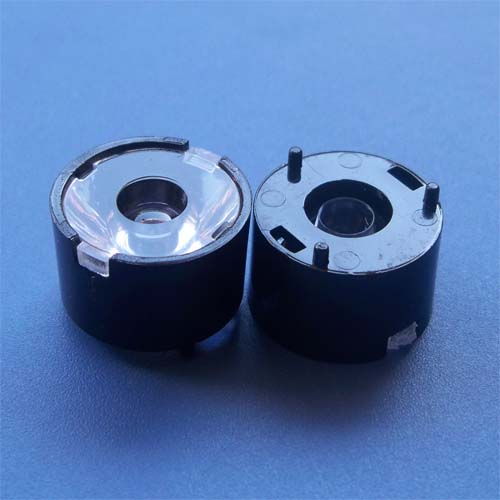

HX-IR15-10 (clear surface)
|
￠15.55
H 9.06 (with holder) |
10°
|
|
|
|

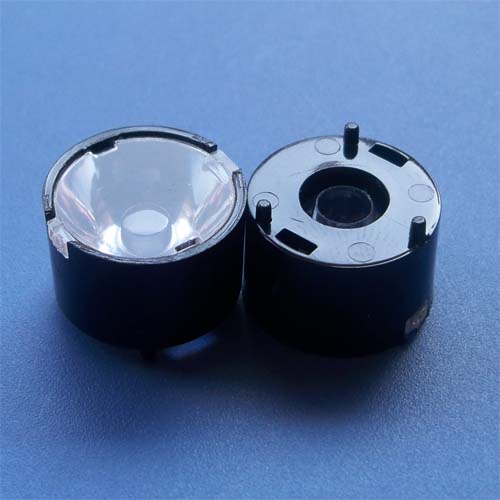

HX-IR15-15 (clear surface)
|
￠15.55
H 9.06 (with holder) |
15°
|
|
|
|

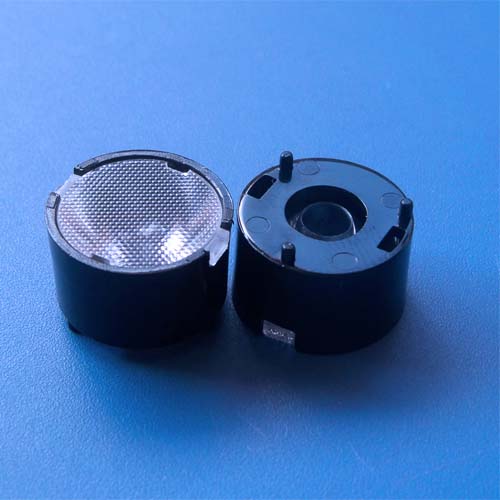

HX-IR15-25L (beads surface)
|
￠15.55
H 9.06 (with holder) |
25°
|
|
|
HX-IR15-40L (beads surface)
|
￠15.55
H 9.06 (with holder) |
40°
|
|
|
|
HX-IR15-60L (beads surface)
|
￠15.55
H 9.06 (with holder) |
60°
|
|
|

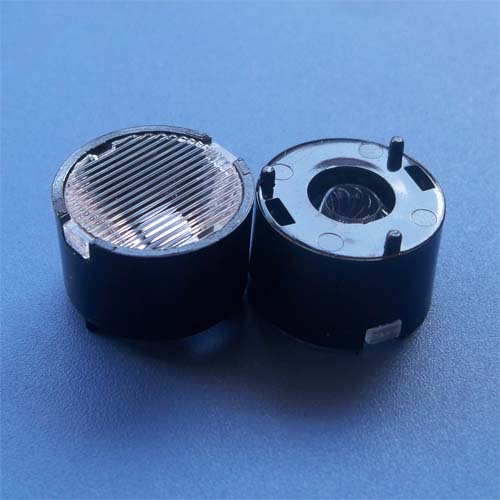

HX-IR15-1550 (Ripple Linear)
|
￠15.55
H 9.06 (with holder) |
15(±5) x 50(±5)
|
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
Purchase: info@opticsledlens.com |
||||
