Diameter27 H4.15mm COB LEDs holder for Bridgelux| CREE| Citizen|Lumileds COB LEDs(HX-H-6A)

• Model:HX-H-6A
• Dimension:Dia.27 x H4.15 mm
• Transmittance:N/A
• For LED:CREE|OSRAM|Lumileds|Bridgelux|Luminus|Citizen COB LEDs
• FOV (Beam angle):N/A deg

PRODUCT DATASHEET

PRODUCT SERIES DATASHEET

Introduction :



Part No.	HX-H-6A
Shape Properties	Round

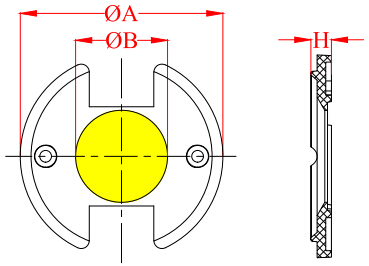

Dimension (mm)	￠A = 27 ￠B = 11.5 H = 4.15
For COB dim. (mm)	LA = / LB = / ￠B = 11.5
Surface Treatment	Polishing surface
Beam Angle	N/A deg (full angle)
For LEDs	CREE , OSRAM ,Lumileds Bridgelux , Citizen, Luminus Sharp, Samsung ,Edison Tridonic,ShineOn, LUSTROUS Liteon,Ledteen COB LEDs
Fixing Method	Screw
Materials	Fireproof PC
RoHS-Compliant	Yes
SGS-Compliant	Yes
Typical Applications	COB Led lighting
Note	All measurements are ± 0.15 mm, unless otherwise indicated
